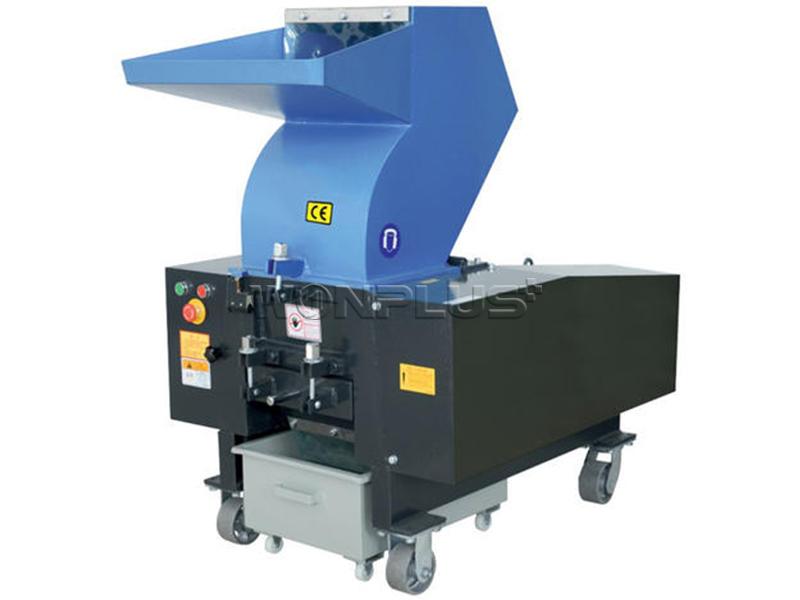

Mainly suitable for crushing PVC profile and pipes. such as: plastic doors and windows, plastic pipes, plates, etc., without cutting segments, can be one-time continuous feeding.
Brand:
WONPLUSItem NO.:
PCPayment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
30-60 daysCrusher Advantage:
1. PC series strength crusher is suitable for crushing all kinds of medium and small soft and hard materials and toughness materials
1. ABS、PE、PP plate and other plates crushing recovery;
2. The rectangular feeding port designed for plate material crushing is convenient for long strip plate to be comminuted and improve working efficiency. The recovery efficiency can be brought into full play by the plate crushing and recovery system composed of suction fan and storage barrel;
3. The sealing bearing is used to keep the bearing rotating for a long time, the tool design is reasonable, the product is uniform, and the knife seat is heat shrinked.
Powerful Crushing:
1. blade structure is suitable for crushing common sheet, pipe, profile, sheet and packaging materials；
2. Adopt sealing bearings, keep the bearing well for a long time；
3. The design of the cutter is reasonable, the alloy steel blade is used, the product is uniform in grain, the heat shrink treatment of the cutter seat, and after strict balance test；
Plastic Pipe Crushing:
1. For crushing all kinds of small and medium-sized plastic pipe, such as PE、PVC pipe, silicon core pipe and other pipe crushing recovery；
2. The pipe feeding port designed for pipe material crushing is convenient for long strip pipe to be put into crushing and improve working efficiency.
3. Adopt sealing bearing is used to keep the bearing well for a long time; the reasonable design of the knife type can make the product grain uniform; the heat shrinkage treatment of the knife seat.
It is used for crushing all kinds of soft and hard plastics, crushing block and strip materials into granular recycling, which greatly improves the utilization rate of raw materials.
Technical Parameters:
|
Type |
PC260 |
PC300 |
PC400 |
PC500 |
PC600 |
PC800 |
PC1000 |
|
Power |
4 |
5.5 |
7.5 |
11 |
18.5 |
22 |
37-45 |
|
Size |
ф200*230 |
ф220*300 |
ф245*400 |
ф280*500 |
ф410*600 |
ф410*800 |
ф410*1000 |
|
Moving Blade |
6 |
9 |
12 |
15 |
18 |
24 |
30 |
|
Fixed Knife |
2 |
2 |
2 |
2 |
4 |
4 |
4 |
|
Capacity |
100-150 |
150-250 |
250-350 |
350-450 |
500-600 |
600-800 |
800-1000 |
|
Screen Hole Size |
ф8 |
ф10 |
ф10 |
ф10 |
ф10 |
ф10-ф16 |
ф10-ф25 |
|
Machine Diameter |
100*70*105 |
110*80*120 |
130*90*135 |
140*100*145 |
145*125*175 |
150*140*180 |
180*170*190 |
|
Weight |
340 |
480 |
660 |
870 |
1010 |
1250 |
2200 |
