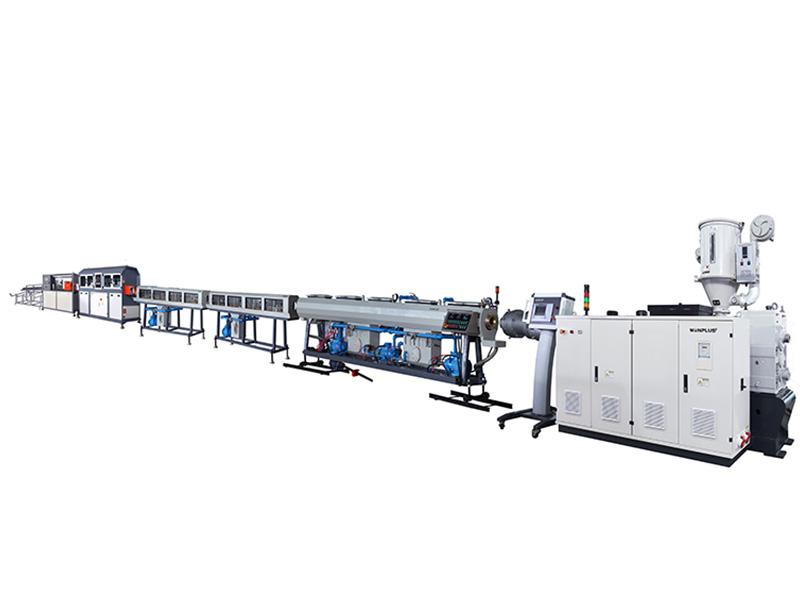

20-63mm PE PPR pipe extrusion line is a small size production line, normally equipped with pipe coil winder, widely used to irrigation and drinking water supply. According to customer’s required, can make multilayers pipe, the structure could be AB, ABA, ABC and so on.
Brand:
WONPLUSItem NO.:
SJ-45/36 + GF63Payment:
T/T, L/CProduct Origin:
Kunshan city, ChinaShipping Port:
Shanghai portLead Time：
30-60 days
Machine Application:

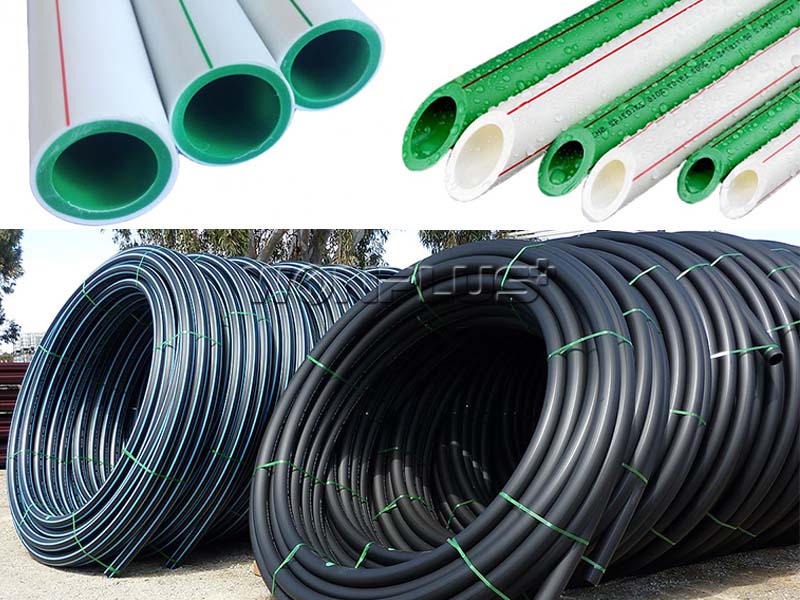

20-63mm PPR HDPE pipe production line mainly to produce series of PPR PPRC HDPE PP pipe, the pipe is widely used to agricultural irrigation,drop irrigation,sprinkling irrigation,and water supply and drainage for municipal gardens, hot and cold drinking water supply for house.
Equipment composition:

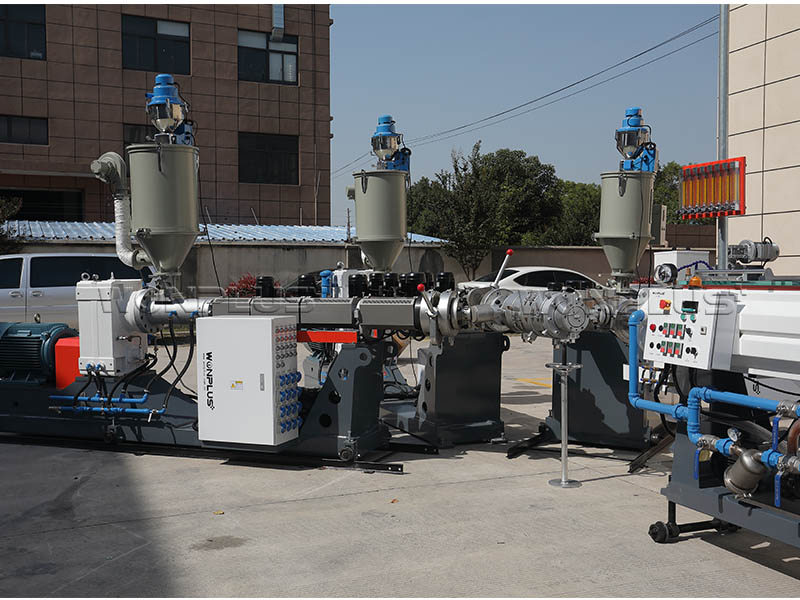

Single Screw Extruder + Co-extruder + Pipe Mould + Vacuum calibration tank + Water spraying cooling tank + Two pedrail Hauler + Dust-free Cutter + Coil winder or stacker.
Feature:
● High output and stable running performance.
● PLC automatic control system and HMI touch screen control panel.
● Adopt the most advanced spiral or basket die structure design.

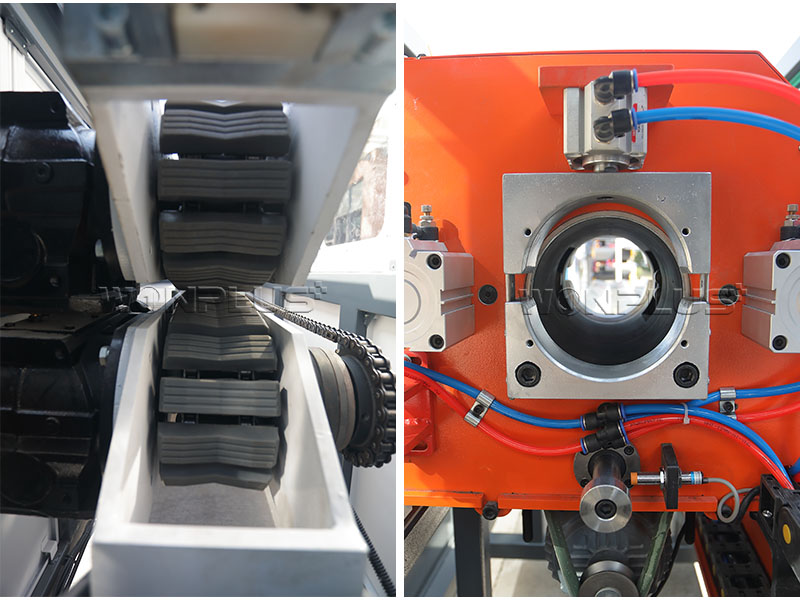

● Haul-off machine with Servo motor driven, more stable and bigger range of speed adjust.
● Dust-free cutter (fly knife or planetary cutter), applied to PE pipes with different diameter range.
● Reliable performance, high production efficiency.
Technical Parameters:
|
Extrusion System |
|||||||||
|
Extruder |
Model |
L/D |
Driven Motor |
Rotary Speed |
Capacity (kg/h) |
||||
|
Single screw extruder |
SJ-45/36 |
36:1 |
45kw |
187rpm |
100-150 |
||||
|
Downstream Equipment (20-63mm) |
|||||||||
|

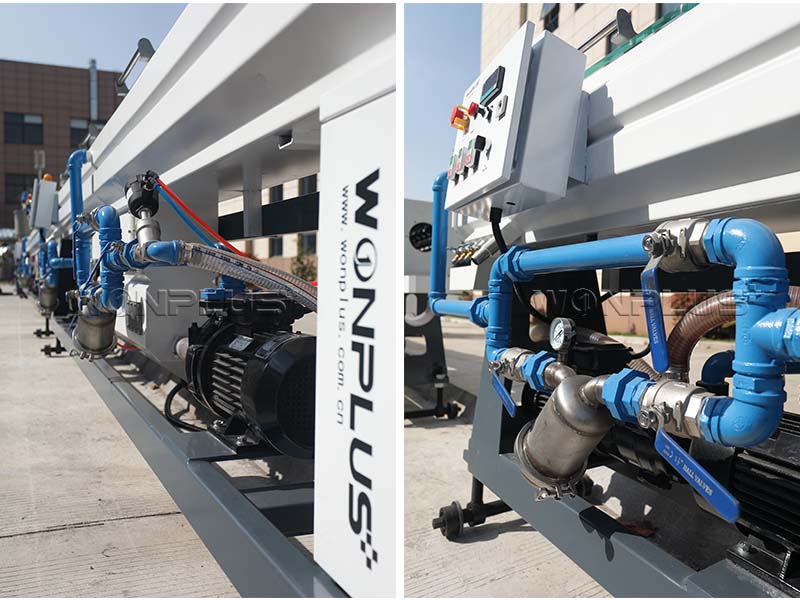

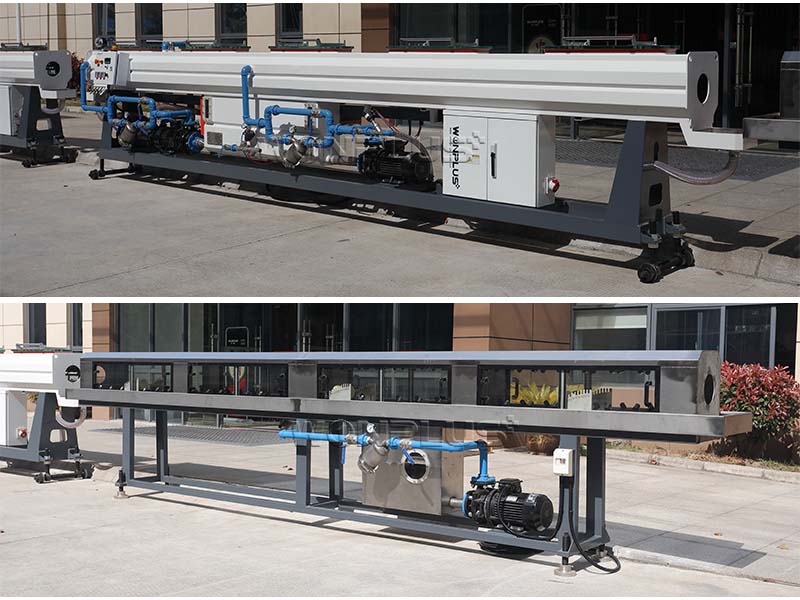

Vacuum calibration tank 1 set |
Spraying cooling tank 2 sets |
Hauler |
Cutter |
Coil winder |
|||||
|
Length: 6000mm |
Length: 6000mm |
Two pedrail type |
Dust-free |
Single/double station |
|||||
|
Vacuum pump: 4kw*1set |
Water pump: 4kw*1set |
Servo motor 0.85kw*2sets |
Cutting power: 1.5kw |
||||||
|
Water pump：4kw*1set 2.2kw*1set |
0-25m/min |
||||||||
Extrusion Line Details:
